Deploy Sealed Secrets Operator via ArgoCD: A Step-by-Step Guide

Deploying sensitive information securely is a critical task in Kubernetes environment.

Sealed Secrets provides a way to securely manage sensitive data. This guide focuses on how to deploy Sealed Secrets using ArgoCD.

What is Sealed Secrets

Sealed Secrets by Bitnami is a Kubernetes controller and a tool that encrypts your secrets into a SealedSecret resource. This encrypted resource is safe to store in public repositories, as it can only be decrypted by the controller running within your Kubernetes cluster.

How to install Sealed Secrets via ArgoCD

For larger environments, the ArgoCD Vault Plugin or similar is recommended due to the integration capabilities with secrets managers like AWS Secrets Manager or Hashicors vault.
However, Sealed Secrets can be an excellent choice for smaller and simpler setups.

Using Upstream Helm Charts with Custom Values

We'll utilize Bitnami's Sealed Secrets Helm chart while maintaining our custom values file in a private GitHub repository.
Here's a folder structure of the Git repository that I created for this tutorial:

├── argocd_applications
│   └── sealed-secrets.yaml
├── charts
│   └── sealed-secrets
│       └── values.yaml

Writing the Values File

Instead of writing the values file from scratch, we can leverage the upstream values file provided by Bitnami and customize it according to our needs.

Add the Sealed Secrets Helm repository:

helm repo add bitnami-labs

Search for available chart versions:

helm search repo bitnami-labs/sealed-secrets --versions

Extract the values file from the latest version (e.g., 2.16.0):

helm show values bitnami-labs/sealed-secrets --version 2.16.0 > charts/sealed-secrets/values.yaml

Customize the values file, for example, by enabling ingress:

  enabled: true
  pathType: ImplementationSpecific
  apiVersion: ""
  ingressClassName: "nginx"
  hostname: "sealed-secrets.devoriales.local"

❗Change the hostname to your hostname

Write the application manifest

In the argocd_applications directory, we define the ArgoCD application manifest for Sealed Secrets. Using a multisource application setup allows us to manage multiple repositories and sources efficiently.

├── argocd_applications
│   └── sealed-secrets.yaml

Create sealed-secrets.yaml with the following content:

kind: Application
  name: sealed-secrets
  namespace: argocd
  project: default
    server: https://kubernetes.default.svc
    namespace: sealed-secrets
    - repoURL:
      chart: sealed-secrets
      targetRevision: 2.16.0
          - $values/charts/sealed-secrets/values.yaml
    - repoURL:
      targetRevision: main
      ref: values
    - CreateNamespace=true
      prune: true
      selfHeal: true

❗$values resolves to the root of the value-files repository. The $values variable may only be specified at the beginning of the value file path.

Example in my structure:

├── argocd_applications
│   └── sealed-secrets.yaml
├── charts
│   └── sealed-secrets
│       └── values.yaml      <<<<<< HERE IS THE CUSTOM VALUES FILE
├── sealed-secrets-chart
│   └── sealed-secrets
│       ├── Chart.lock
│       ├── Chart.yaml
│       ├──
│       ├── charts
│       ├── crds
│       ├── templates
│       └── values.yaml


Pushing Files to GitHub

After setting up your repository structure and configuration files, push them to your remote GitHub repository.

git add .
git commit -m "Add Sealed Secrets configuration"
git push origin <your-branch>

Applying the ArgoCD Application Manifest

To deploy the Sealed Secrets application, apply the ArgoCD application manifest to your Kubernetes cluster:

kubectl apply -f argocd_applications/sealed-secrets.yaml

Verify the Deployment

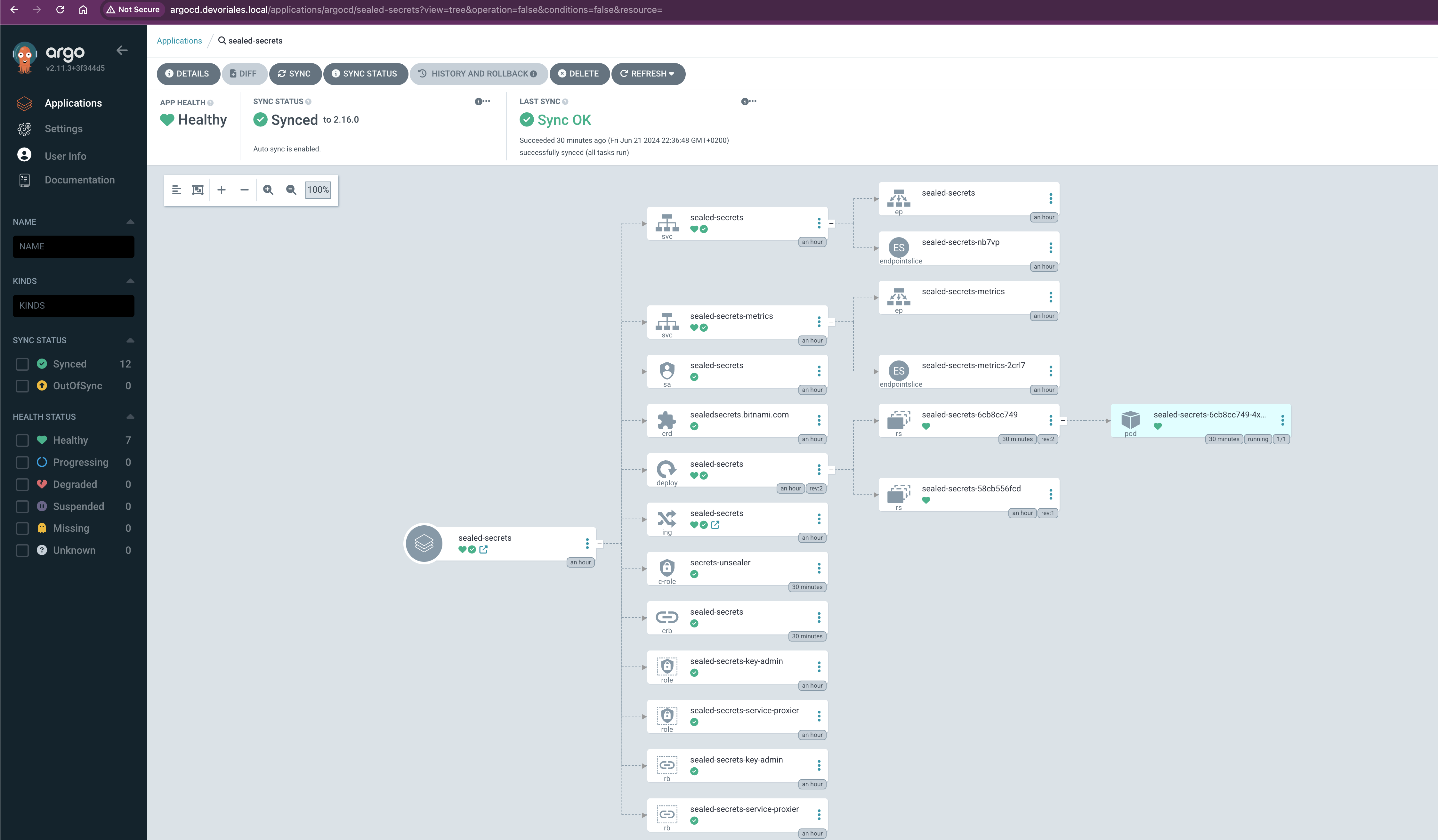

In the ArgoCD UI, you can verify the deployment by checking the sync status and health of the Sealed Secrets application:

sealed secrets deployed to the cluster via ArgoCD

Download the sealed secrets client

To interact with Sealed Secrets, we need to install the kubeseal CLI. Ensure you select the correct version; for Apple Silicon, you need the amd64 architecture.

Download the kubeseal binary:

curl -L -o kubeseal-darwin-amd64.tar.gz

Extract the package:

tar -xvzf kubeseal-darwin-amd64.tar.gz

Move the binary to a directory in your PATH:

mv kubeseal-darwin-amd64/kubeseal /usr/local/bin/kubeseal

If the extraction creates a directory, adjust the mv command accordingly.

Verify the kubeseal cli:

kubeseal --help

Usage of kubeseal:
      --add_dir_header                   If true, adds the file directory to the header of the log messages
      --allow-empty-data                 Allow empty data in the secret object
      --alsologtostderr                  log to standard error as well as files (no effect when -logtostderr=true)
      --as string                        Username to imp


Deploying Sealed Secrets via ArgoCD ensures that your sensitive information remains secure and accessible only within your Kubernetes cluster.

By utilizing a multisource application setup and customizing the Helm chart values, you can maintain a scalable and manageable deployment process.

For larger environments, consider exploring the ArgoCD Vault plugin for more advanced secret management capabilities.
